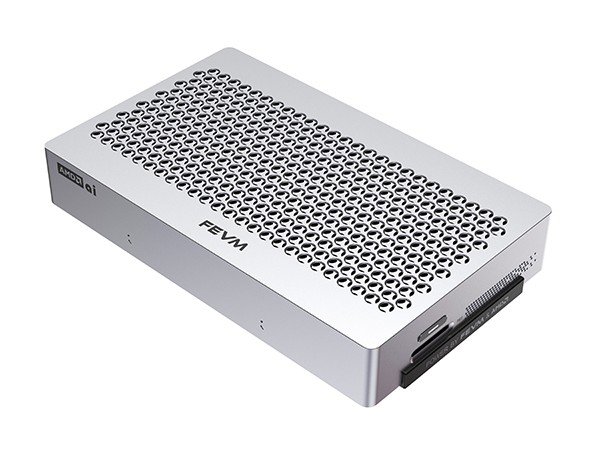

A ~1 liter mini PC from FEVM with the Ryzen AI Max+ 395 and 128GB RAM.
Hardware
- APU: Ryzen AI Max+ 395, Radeon 8060S (gfx1151)
- RAM: 128GB LPDDR5X at 8000 MT/s (Micron MT62F4G32D8DV-023 WT)
- Storage: 3× M.2 PCIe 4.0 x4 (one shares lanes with OCuLink)
-
I/O: OCuLink, 2× USB4, 10GbE (Marvell AQC113) + 2.5GbE (Realtek,
r8169), Wi-Fi 7 / BT (MediaTek MT7925) - Size / weight: 220 × 133 × 35 mm, ~1.15 kg
- Retail box: 33 × 23 × 10 cm
- PSU: external 245W GaN brick (YL245W1225, 20V × 12.25A)
- Cooling: two blower fans, aluminum case with a vented top
- EC: ITE IT5571
Firmware
Official downloads: fevmpc.com → Support → Driver Download → "FAEX1 BIOS and EC". Older versions are mirrored on archive.org.
Latest: BIOS 1.06 (2026-07-20), EC 1.29.
BIOS update without Windows (from a UEFI Shell USB stick, tested 1.03 → 1.06):
-
The 1.06 archive is missing the
efi/Bootfolder with the UEFI Shell, and its BIOS folder is not named the way the script expects. Build a FAT32 USB stick like this:efi/Boot/BootX64.efi <- from the 1.03 archive (UEFI Shell) efi/Boot/startup.nsh <- from the 1.03 archive 0_Afu_Flash/ <- contents of FAEX1_1.06_BIOS from the 1.06 archive (Flash.cmd, *.bin, Tools/)0_Afu_Flashmust contain exactly one.bin. -
Disable Secure Boot (the shell is unsigned), boot from the stick (F7),
startup.nshruns AFU with/CAPSULE /P /B /N /K /L /X /RLC:E; confirm withy, the machine reboots into the BIOS flash screen and reboots again.
